Model:200L-500L

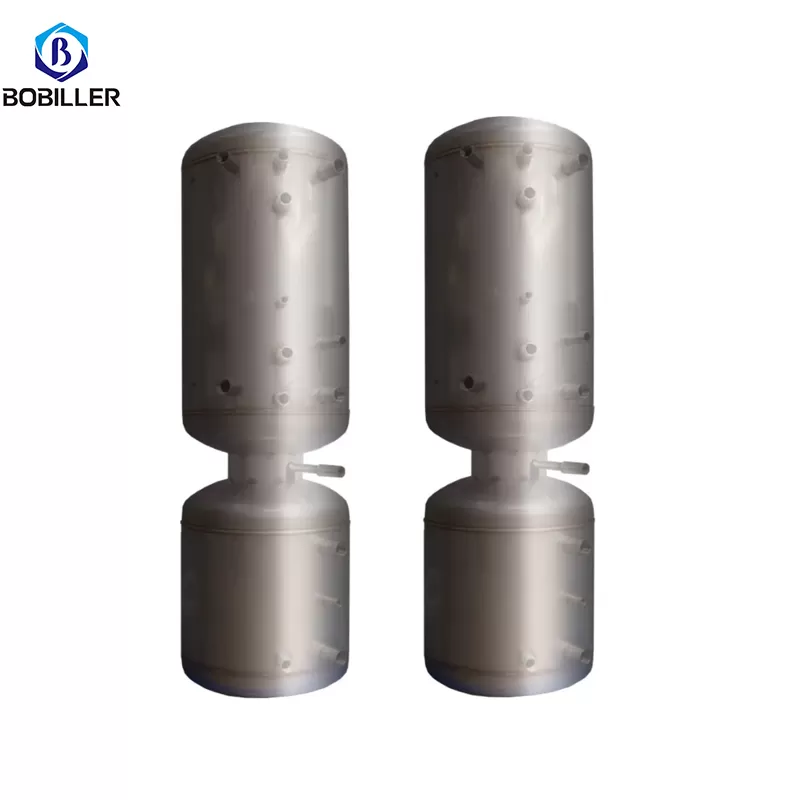

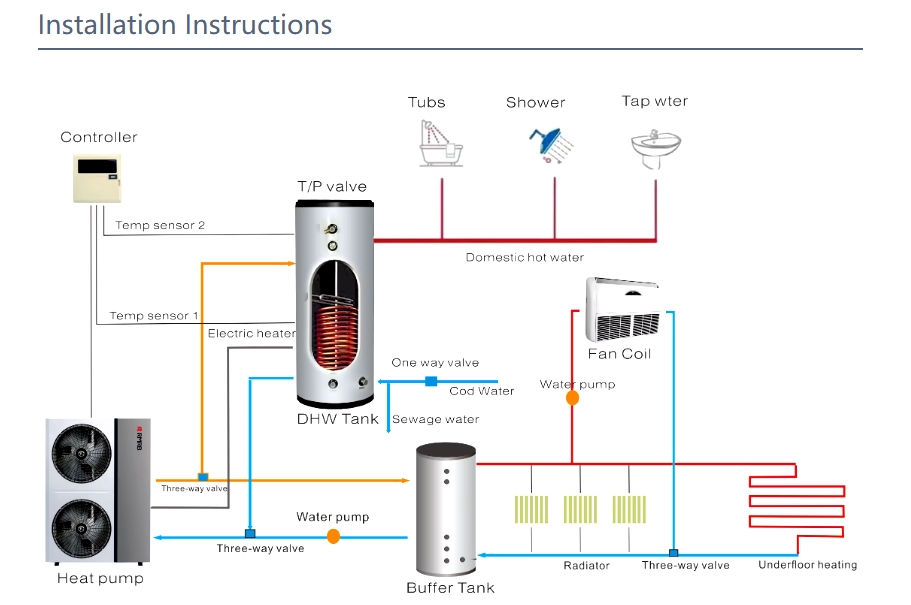

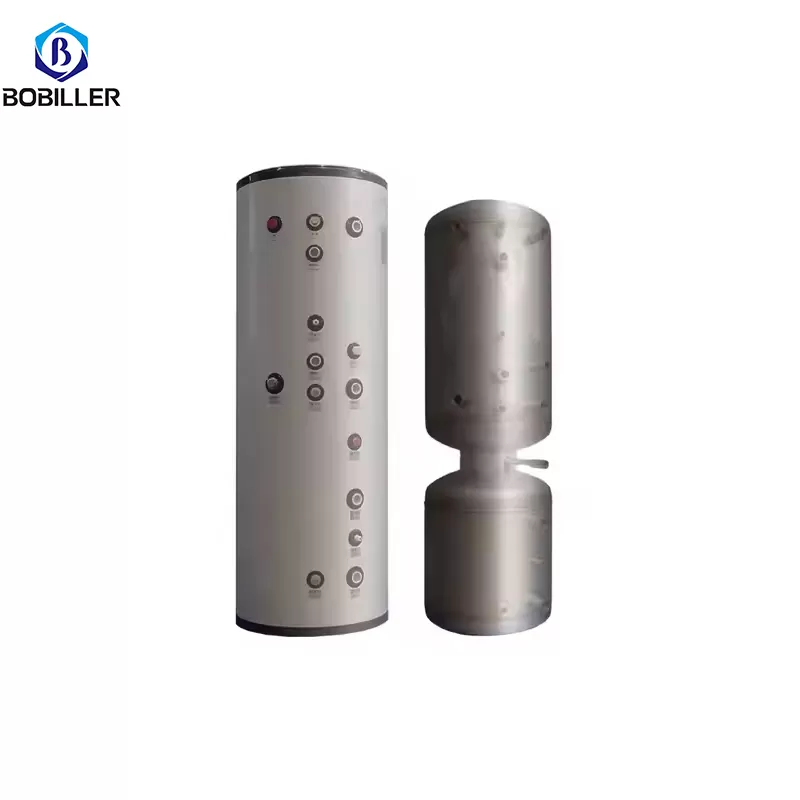

The combination of a domestic hot water tank and a buffer tank that can be heated simplifies the installation and size of the heat pump system, and provides more stable performance.

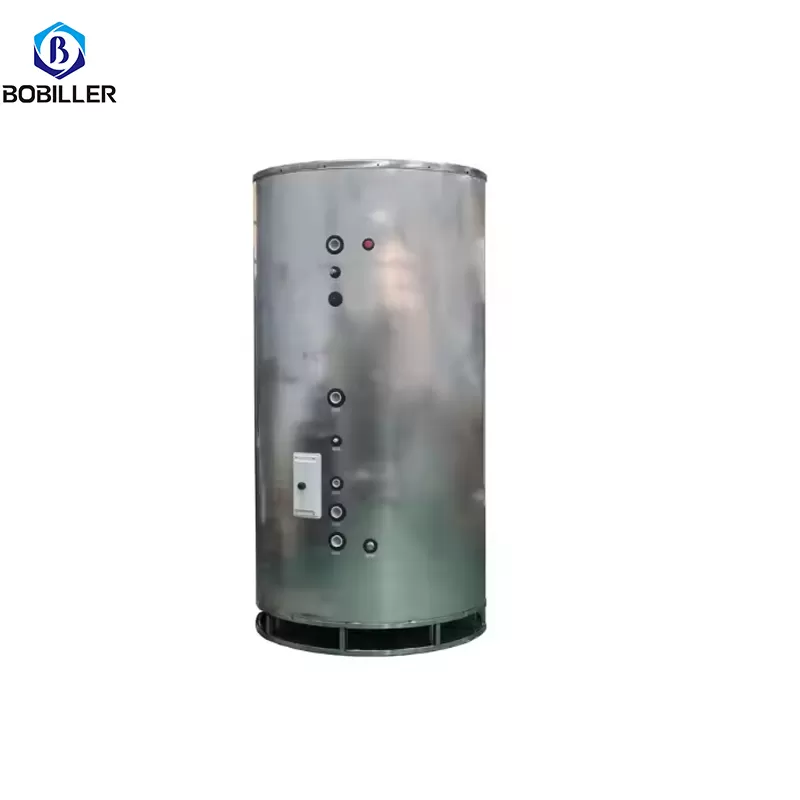

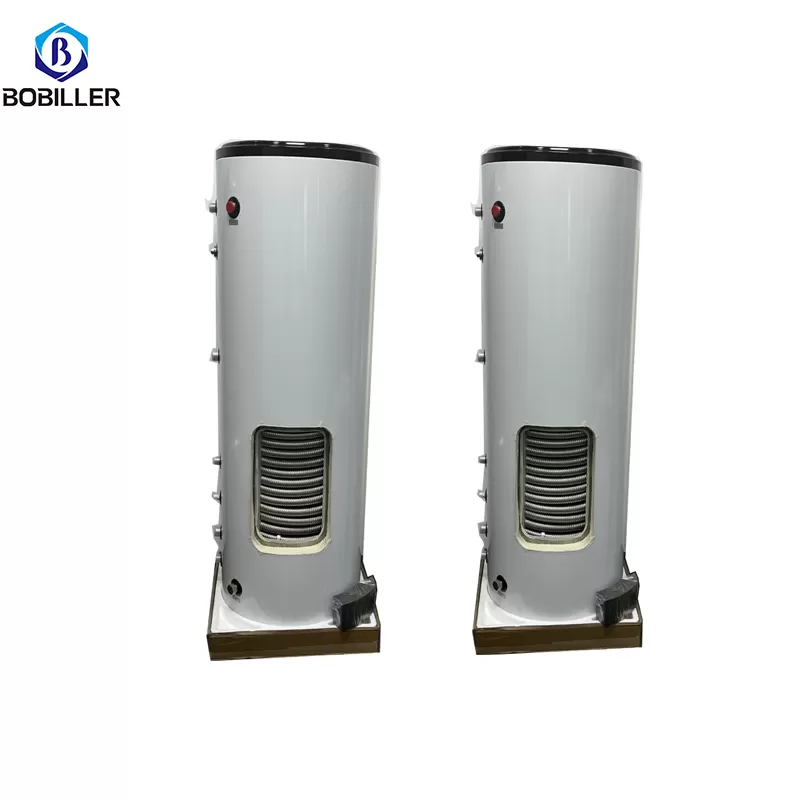

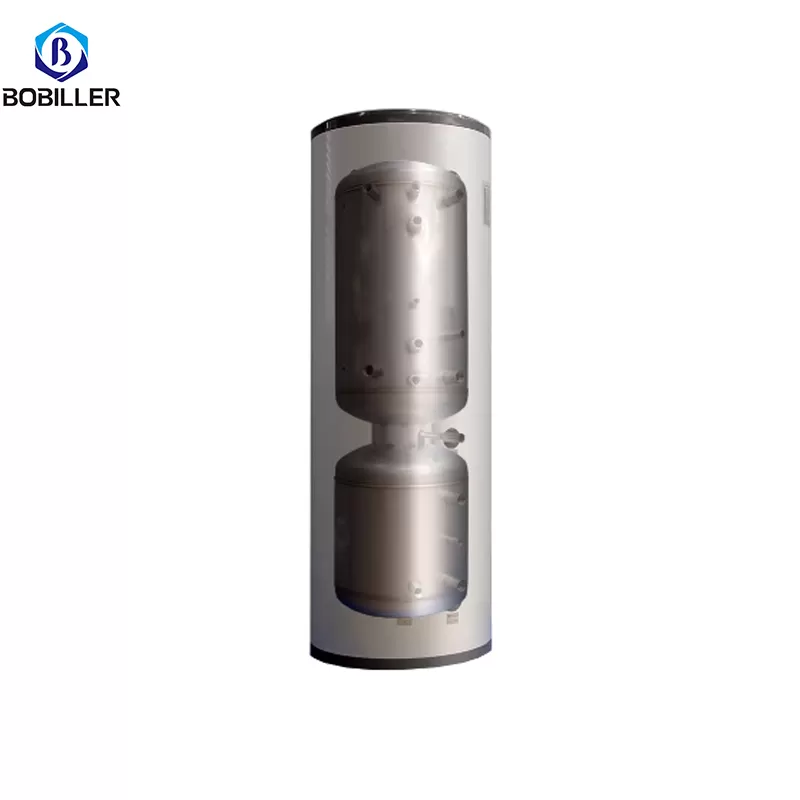

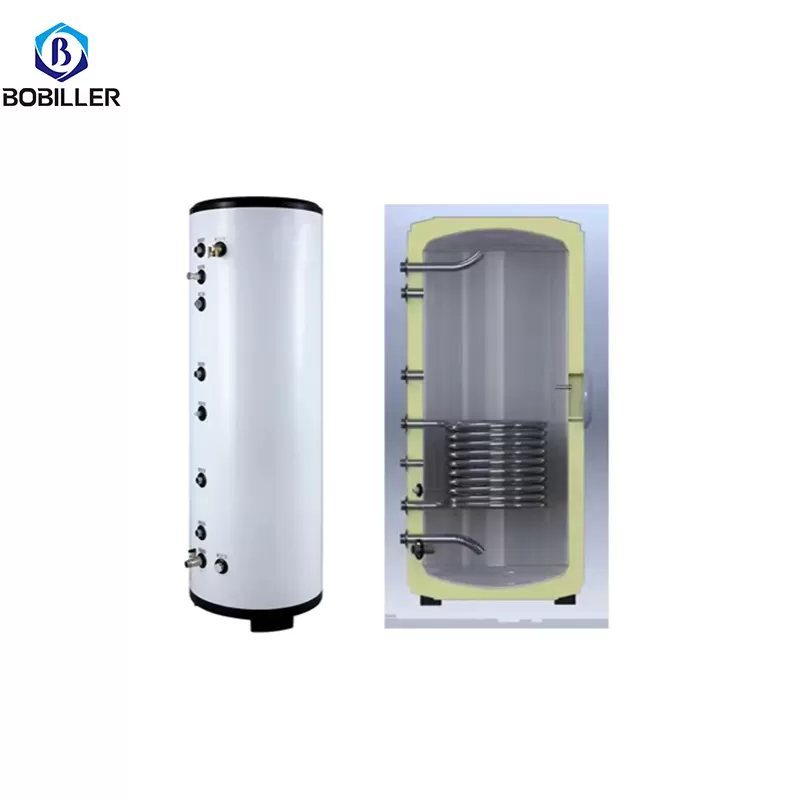

Bobiller Heat Pump Water Tank Domestic Hot Water Tank With Coil Connect Buffer Watertank Hot Water Storage Air Source Heat Pump
Model | DT-200 | |
Inner liner material | SUS304 | |
Inner cavity thickness(MM) | 1.2 | |
Housing material | Color Steel Sheel | |
Shell thickness(MM) | 0.4 | |
Maximum working pressure(bar) | 8 | |
Hot water tank | Capacity | 120L |
Circular import and export | G1" M | |
Hot and cold water ports | G3/4" M | |
Water return port | G3/4" M | |
Temperature probe port | G3/8" F | |
Anode rod mouth | G3/4" F | |
P/TP valve port | G3/4" F | |
Electric heating port | Optional | |
Electric heating port | Optional | |
Sewage outlet | G3/4" F | |

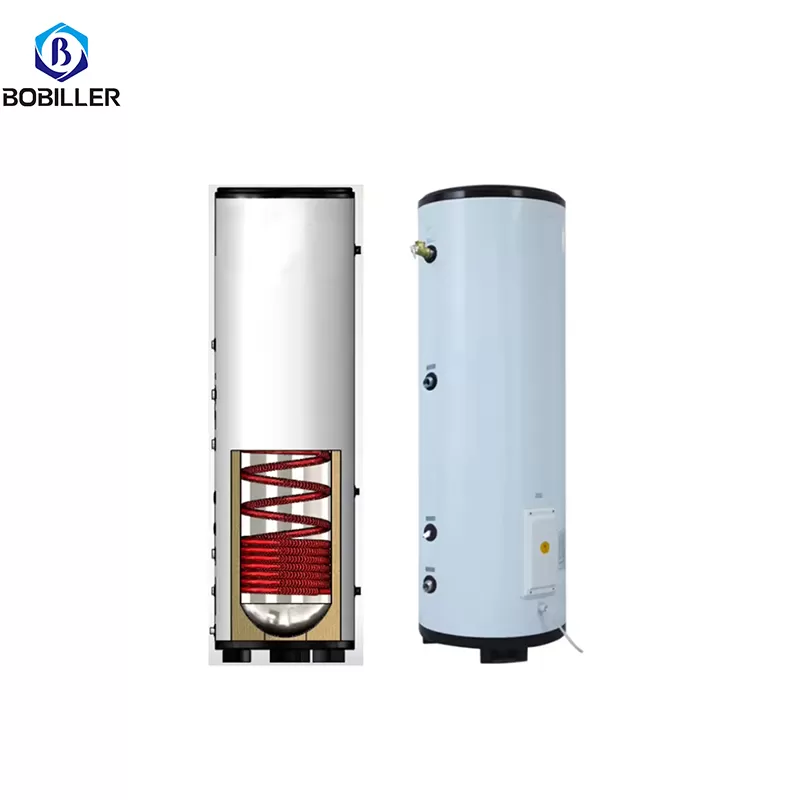

Coil material | SUS304 | |
Coil thickness(mm) | 0.3 | |
Coil specifications (Bellows) | φ25mmx10m | |
Coil area(㎡) | 1.1 | |
Buffer Water Tank | Capacity | 60L |
Circular import and export 1 | G1" F | |
Circular import and export 2 | G1" F | |
Temperature probe port | G3/8" F | |
Electric heating port | Optional | |
Electric heating port | Optional | |
Sewage outlet | G3/4" F | |
Exhaust port | G1/2" F | |
Adapted heat pump heat production | 6KW below | |
Product Size(mm) | φ520*1575 | |
Package Size(mm) | 605*605*1600 | |
Net weight(kg) | 43 | |
Gross weight(kg) | 47 |
