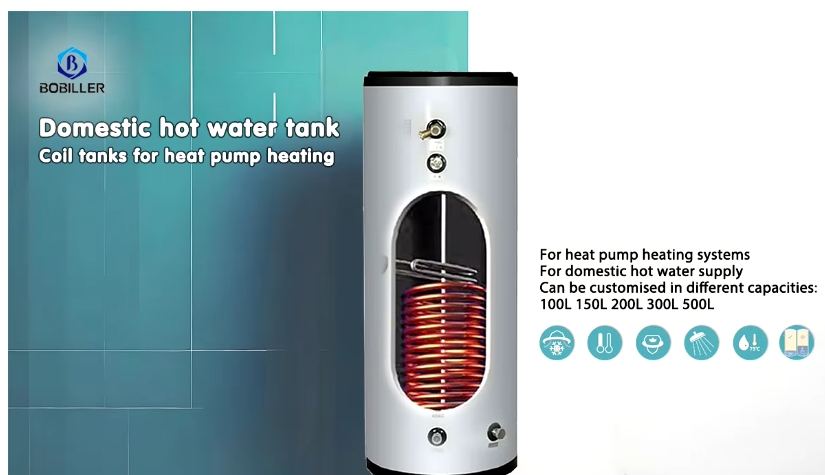

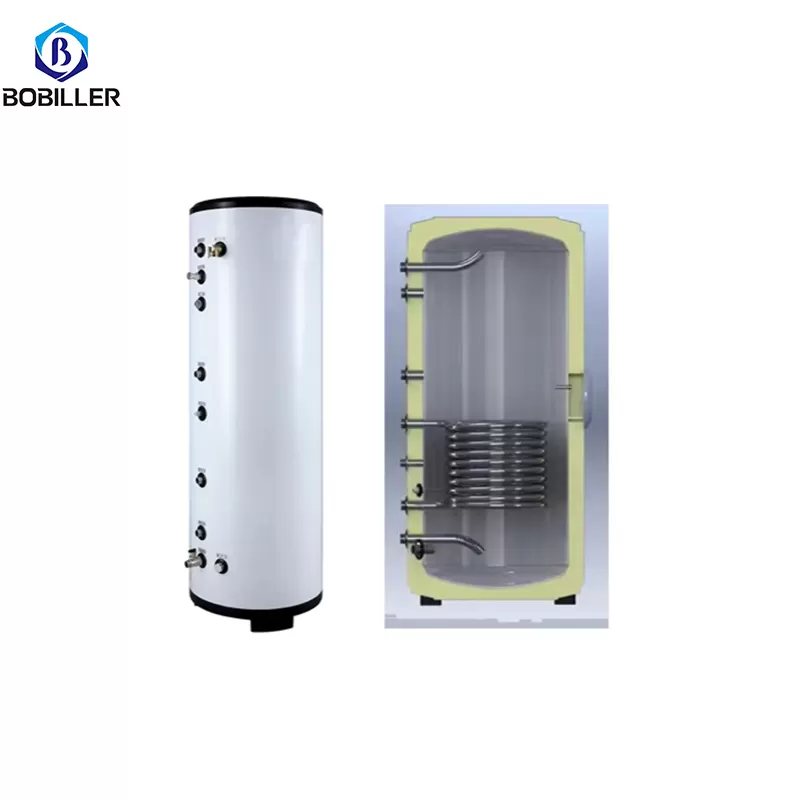

Tank type:Demestic Hot Water Tank
Capacity (L):100-500L(OEM)
Model | DHW-150 |
Tank type | Hot water tank |
Capacity (L) | 150 |
Liner material | SUS304 |
Liner thickness (mm) | 1.0 |
Shell material | Color steel plate |
Shell thickness | 0.4 |
Coil material | SUS304 |
Coil Type | Corrugated pipe |
Coil Specifications | φ25mm*20m |
Coil thickness (mm) | 0.3 |
Coil area (㎡) | 2.2 |
Cold water import | G3/4" M |
Hot water outlet | G3/4"F |
Circular import | G1" M |
Circular outlet | G1" F |
Water return | G3/4" M |
Water filling | / |
Exhaust vent | / |
Electric heater | / |
Electric heating | / |
Electric heating controller | / |
Temperature probe | G1/4" F |
Temperature pressure gauge | G1/2" F |
Anode rod mouth | G3/4" F |
P/TP valve port | / |
Safety valve | G1/2"M |
Sewage outlet | G3/4" M |
Working pressure (bar) | 8 |
Insulation | Polyurethane |
Insulation layer thickness (mm) | 50 |

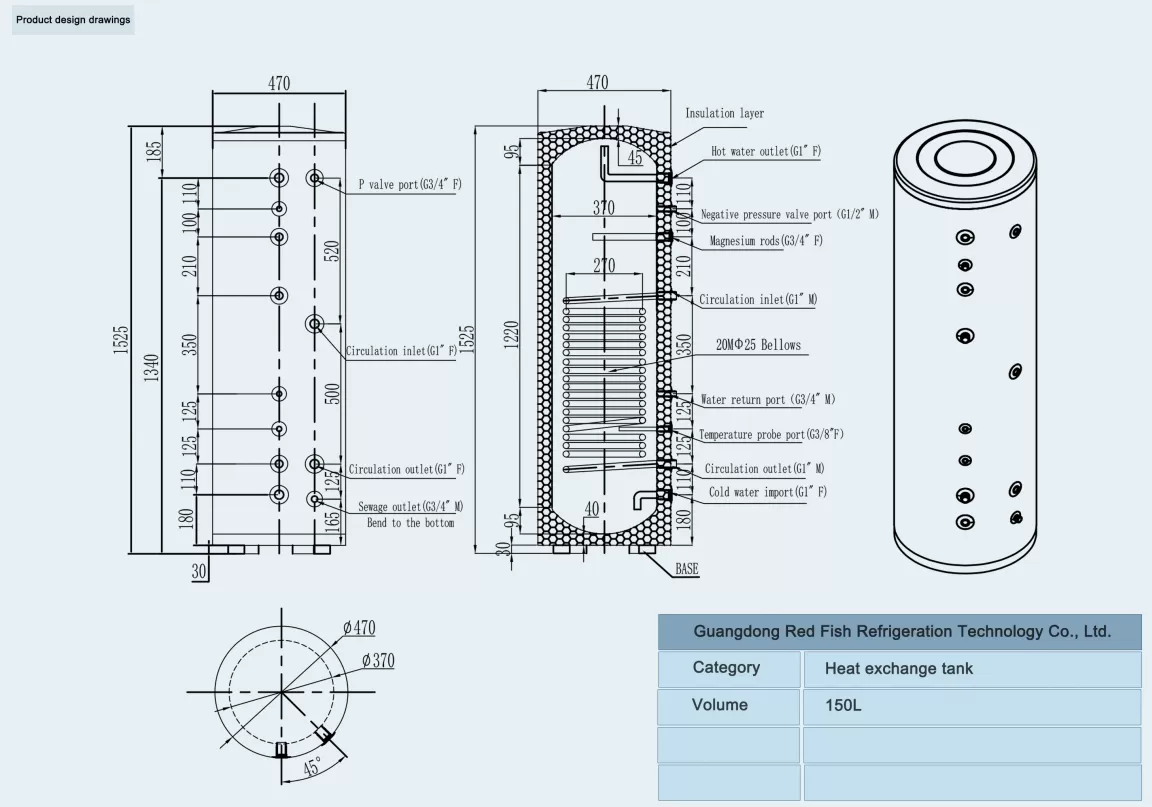

Product size (mm) | φ470*1525 |
Packaging size (mm) | 540*540*1530 |
Bobiller, The Best Mate!
Our company offers a complete line of heat pump units and refrigeration equipment systems, as well as refrigeration compressors, copper fittings, expansion valves, dual-measure gauges, and other accessories and tools, so you can get everything you need for the refrigeration industry in one place. And we can provide you with customized manufacturing services.
