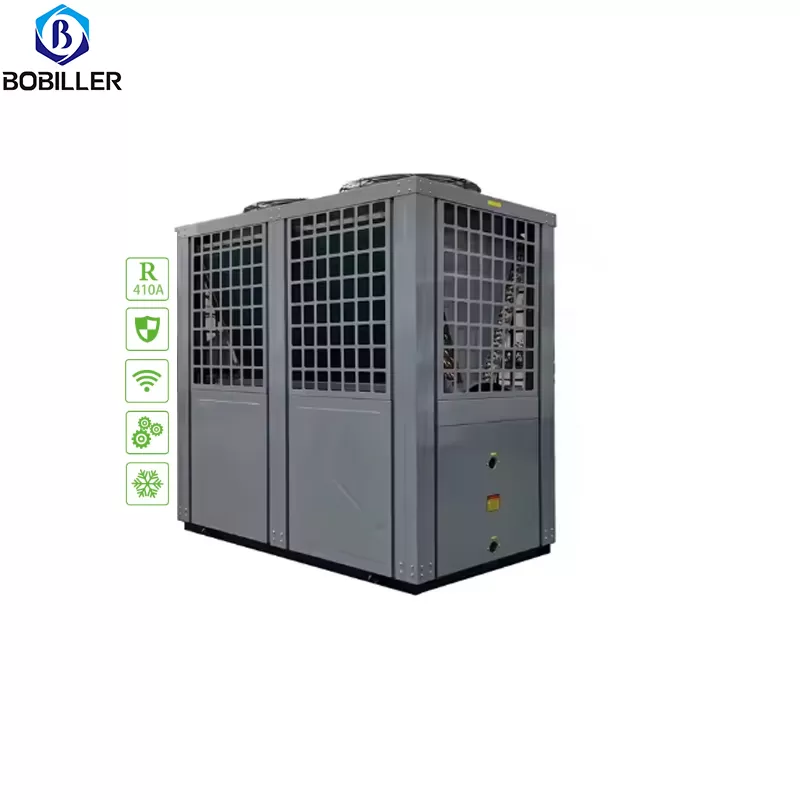

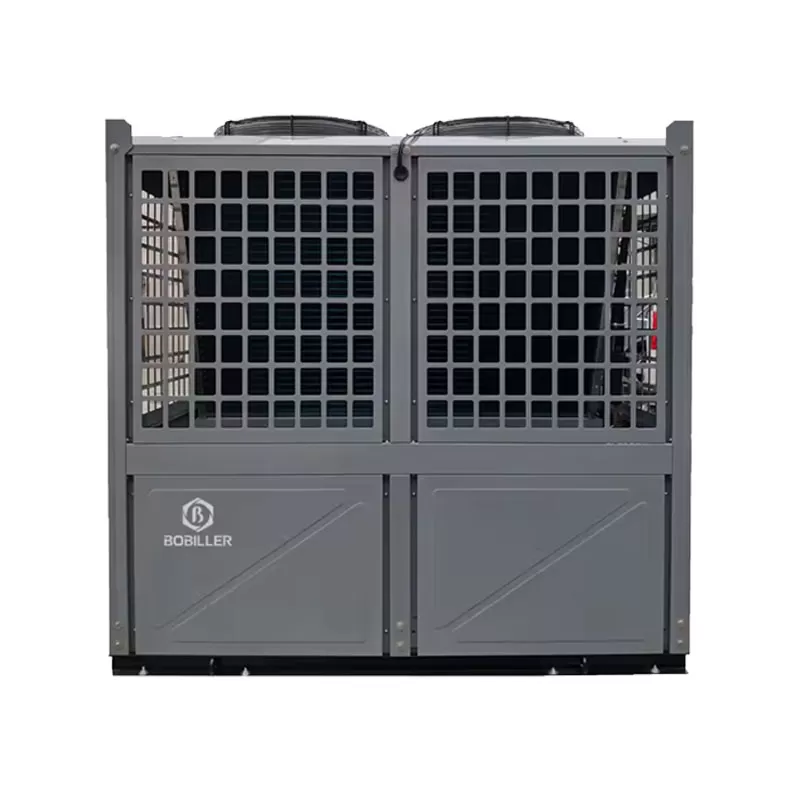

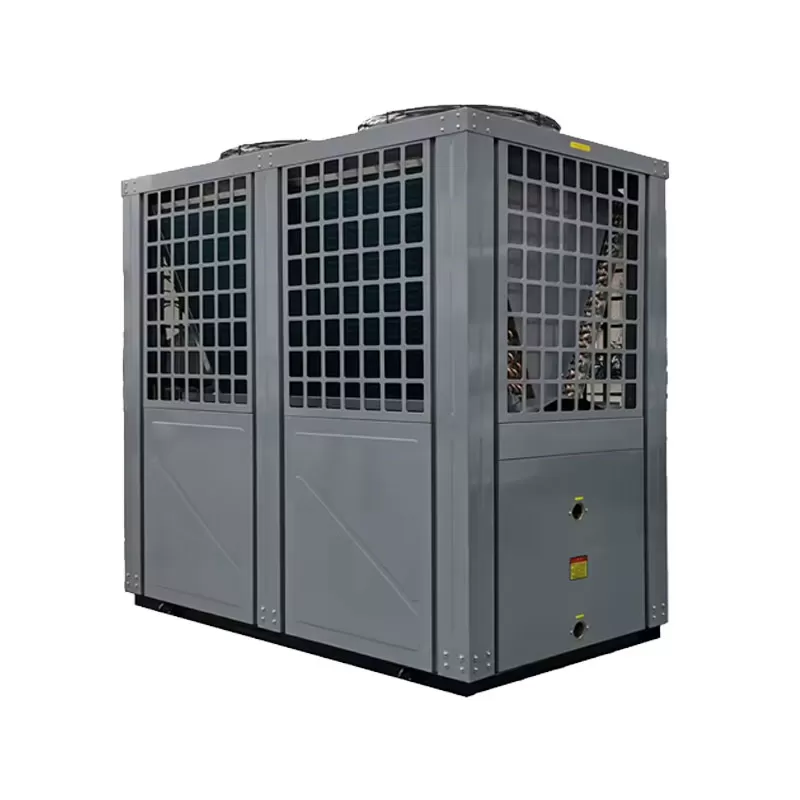

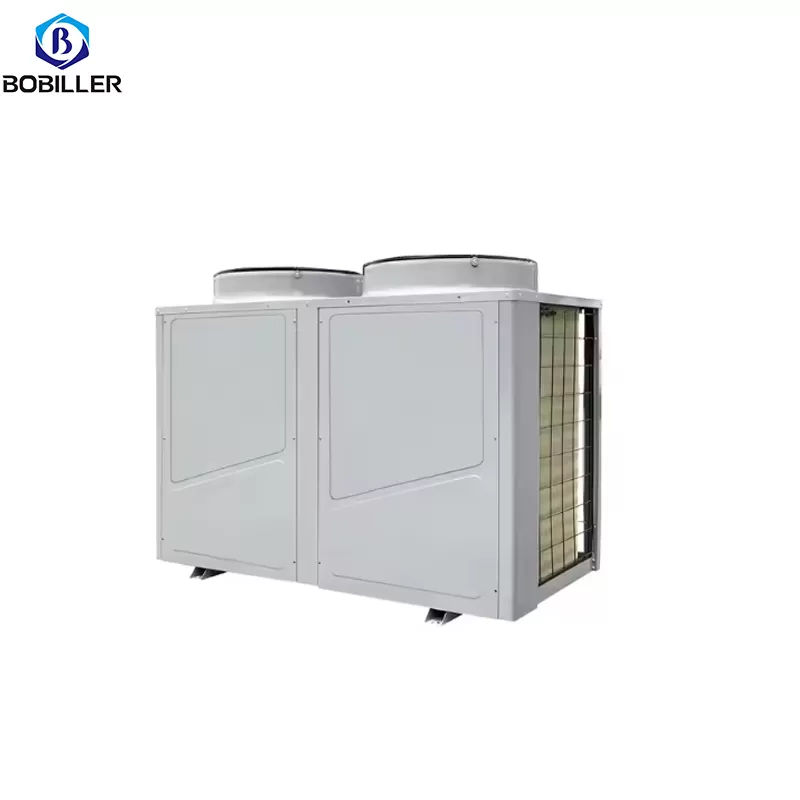

1、Commercial air source heat pump water heater
2、Suitable for: schools, swimming pools, hospitals, hotels, etc.
3、Maximum temperature 65℃, COP up to 4.19;
4、Operating temperature range: -10℃~ 45℃;
5、Compressor using refrigerant: R410A/R407C
6、With electric heater backup function
For price, please contact customer service
| Model | SPHC10 | SPHC12 | SPHC15 | SPHC20 | SPHC25 | SPHC30 |
| Power supply | ||||||
| Operating ambient air temperature range -7℃ ~ 43℃ | ||||||
| Performance Condition: Air 26°C, Water 26°C, Humidity 80% | ||||||
| Heating capacity (kW) | 40.8 | 50.0 | 69.0 | 90.0 | 109.0 | 130.0 |
| Power input (kW) | 8 | 10.6 | 13.1 | 17.3 | 21.1 | 25.6 |
| COP | 4.6 | 5.1 | 5.3 | 5.3 | 5.1 | 5.1 |
| Performance Condition: Air 15°C, Water 26°C, Humidity 70% | ||||||
| Heating capacity (kW) | 37.0 | 45.0 | 60.0 | 80.0 | 98.0 | 119.0 |
| Power input (kW) | 8.1 | 10.1 | 12.8 | 16.9 | 21.3 | 26.3 |
| COP(KW/KW) | 4.1 | 4.5 | 4.7 | 4.7 | 4.6 | 4.5 |
| Performance Condition: Air 35℃,Water 28℃, Humidity 80% | ||||||
| Cooling capacity (kW) | 25.0 | 30.7 | 39.4 | 52.8 | 67.0 | 80.0 |
| Power input (kW) | 8.1 | 9.9 | 12.3 | 16.5 | 21.6 | 25.8 |
| EER(KW/KW) | 3.1 | 3.1 | 3.2 | 3.2 | 3.1 | 3.1 |
| Water side heat exchanger | ||||||
| Airside heat exchanger | ||||||
| Casing | ||||||
| MAX power input (kW) | 15.6 | 19.1 | 23.6 | 31.1 | 37.9 | 44.3 |
| MAX current (kW) | 23.2 | 28.9 | 35.7 | 47.2 | 57.5 | 67.2 |
| Heating capacity (kW) | 35.0 | 45.0 | 60.0 | 80.0 | 94.0 | 106.0 |
| Recommended flow(m³/h) | 15.0 | 19.0 | 26.0 | 35.0 | 40.0 | 45.0 |
| water pipe size（DN) | 80 | |||||
| Net Dimension L/W/H(cm) | 145/75/116 | 145/85/116 | 150/90/165 | 170/110/170 | 200/110/190 | |
| Shipping Dimension L/W/H(cm) | 149/79/130 | 153/93/130 | 163/102/178 | 177/122/186 | 206/116/202 | |
| Net Weight(KG) | 222 | 322 | 340 | 530 | 560 | 620 |
| Shipping Weight(KG) | 251 | 356 | 370 | 590 | 610 | 650 |
| Remark: The data above is only for reference, designs and specifications might be changed without prior notice. | ||||||
