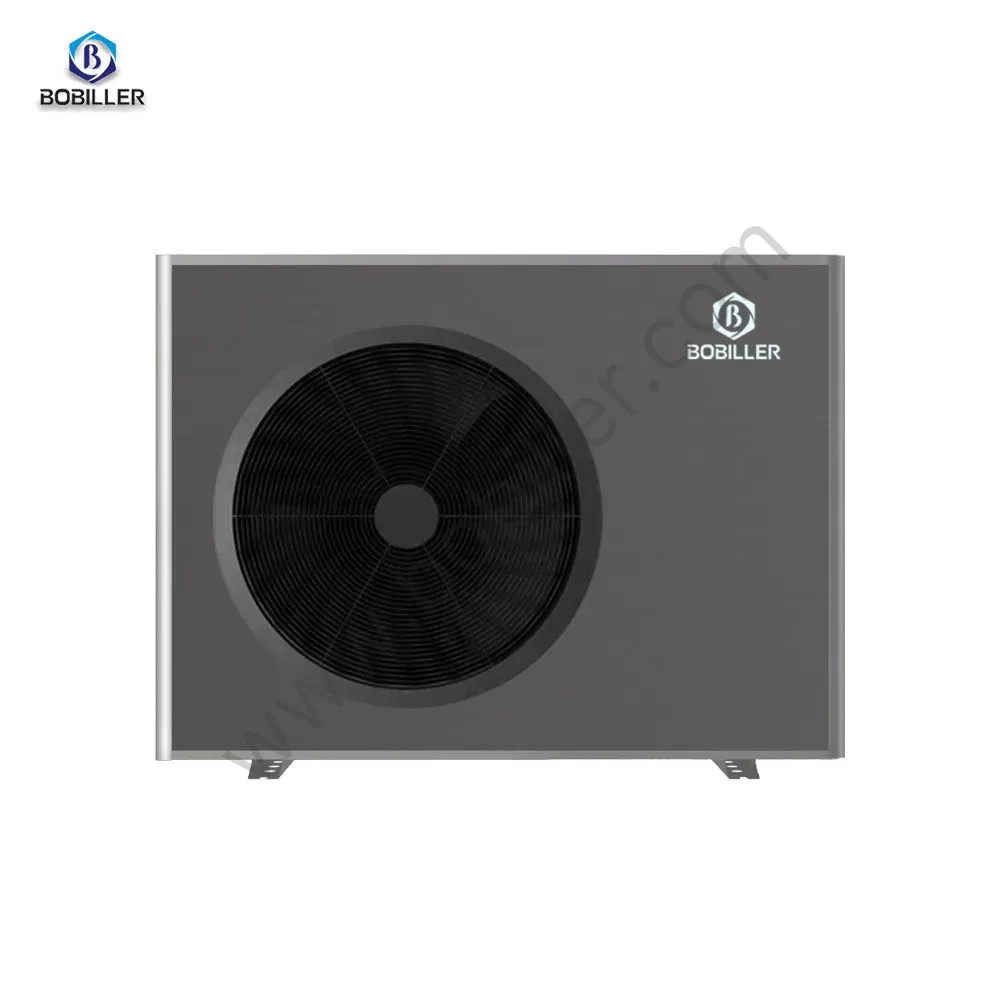

1，Using Mitsubishi compressor
2，Air source DC inverter ERP A+++

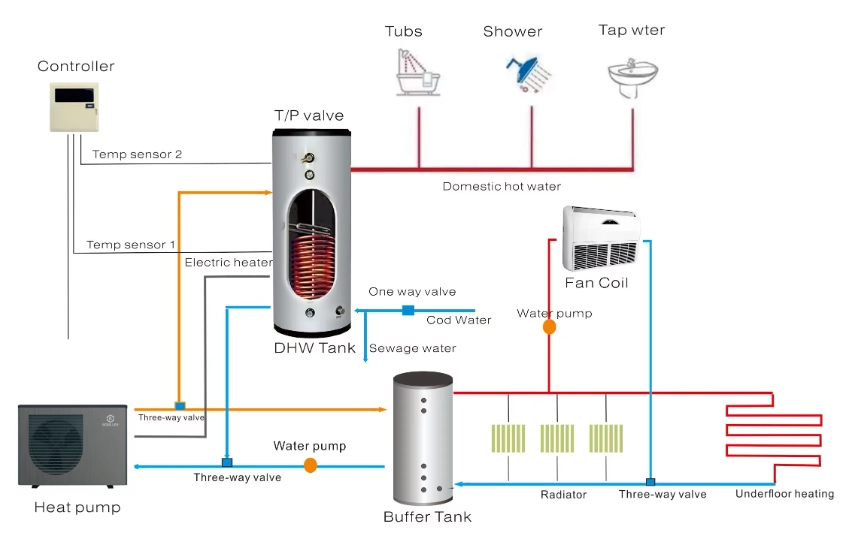

3，DHW heating and cooling
4，High energy ratio, using 290 refrigerant
5，ASHP heating capacity
6，8kw 10kw 13kw 15kw
7，Suitable for the region: Northern Europe, Eastern Europe, North America
8，Ambient temperature: -25℃~46℃.
9，Maximum water temperature: 60 degrees
10，Certification: ISO9001, CE, CB, ERP A+++, etc
2.ASHP Heating Capacity: DC Inverter 10kw13KW heat pump.
3.Best Selling Market: Global, especially in North & East Europe, North America,ect. 4.Ambient Temp of Using: Minus -25℃~46℃
5.Max water temperature: 60 degrees
6.Certification: ISO9001, CE, CB.ERP A+++,ect.
7.Use *Mitsubishi* Inverter Compressor for DC Inverter Air Source Heat Pump
8.Wilo water pump,AOL expansion tank inside.SWEP/Alfa Laval heat exchanger,3KW backup heaterNew R290 inverter heat pump water heater Europe latest standard energy saving heat pump heating 13KW 15KW price
| Model： | Bobi plus 60 | Bobi plus 90 | Bobi plus 120 | Bobi plus 160 | Bobi plus 160 | Bobi plus 120T | Bobi plus 160T | Bobi plus 160T | ||
| Heating Capacity Range | kW | 1.5-7 | 2-10 | 3-13 | 4-18 | 4-18 | 3-13 | 4-18 | 4-18 | |
| Heating (A7/6℃,W30/35℃) | Heating Capacity | kW | 6.2 | 9.2 | 12.1 | 16.2 | 16.2 | 12.1 | 16.2 | 16.2 |
| Power Input | kW | 1.36 | 2.02 | 2.67 | 3.58 | 3.51 | 2.66 | 3.58 | 3.49 | |
| Current | A | 5.91 | 8.83 | 11.43 | 15.26 | 15.26 | 4.41 | 5.89 | 5.89 | |
| COP | W/W | 4.56 | 4.55 | 4.53 | 4.53 | 4.62 | 4.55 | 4.53 | 4.64 | |
| Heating (A7/6℃,W47/55℃) | Heating Capacity | kW | 6.1 | 9.1 | 12.0 | 16.10 | 15.63 | 12.10 | 16.10 | 16.20 |
| Power Input | kW | 2.07 | 3.06 | 4.15 | 5.56 | 5.56 | 4.05 | 5.43 | 5.53 | |
| COP | W/W | 2.95 | 2.97 | 2.89 | 2.90 | 2.81 | 2.99 | 2.97 | 2.93 | |
| Cooling (A35/24℃,W23/18℃) | Cooling Capacity | kW | 6.3 | 9.0 | 11.30 | 15.10 | 16.02 | 11.30 | 15.20 | 16.06 |
| Power Input | kW | 1.62 | 2.33 | 2.95 | 3.96 | 4.16 | 2.91 | 3.98 | 4.13 | |
| EER | W/W | 3.89 | 3.86 | 3.83 | 3.81 | 3.85 | 3.88 | 3.82 | 3.89 | |
| Rated water flow | m3/h | 1.1 | 1.6 | 2.1 | 2.8 | 2.8 | 2.1 | 2.8 | 2.8 | |
| Rated voltage /Frequency | V/Hz | 220~240/50 | 220~240/50 | 220~240/50 | 220~240/50 | 220~240/50 | 380~415/50 | 380~415/50 | 380~415/50 | |
| Maximum input power | kW | 2.80 | 3.50 | 4.70 | 6.60 | 6.60 | 4.70 | 6.50 | 6.50 | |
| Maximum input current | A | 12.0 | 15.0 | 20.0 | 28.0 | 28.0 | 11.0 | 17.0 | 17.0 | |
| High pressure value cut-off pressure | MPa | 3.1 | 3.1 | 3.1 | 3.1 | 3.1 | 3.1 | 3.1 | 3.1 | |
| Low pressure valve cut-off pressure | MPa | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | |
| Brand/Type of Compressor | / | GMCC/Rotary | GMCC/Rotary | GMCC/Rotary | GMCC/Rotary | GMCC/Rotary | GMCC/Rotary | GMCC/Rotary | GMCC/Rotary | |
| Brand of EEV | Sanhua | Sanhua | Sanhua | Sanhua | Sanhua | Sanhua | Sanhua | Sanhua | ||
| Brand of 4-way valve | Sanhua | Sanhua | Sanhua | Sanhua | Sanhua | Sanhua | Sanhua | Sanhua | ||
| Brand of Pressure sensor | Sanhua or Match-Well | Sanhua or Match-Well | Sanhua or Match-Well | Sanhua or Match-Well | Sanhua or Match-Well | Sanhua or Match-Well | Sanhua or Match-Well | Sanhua or Match-Well | ||
| Refrigerant | / | R290 | R290 | R290 | R290 | R290 | R290 | R290 | R290 | |
| Air flow | m3/h | 3500 | 4000 | 4500 | 8000 | 8000 | 8000 | 9000 | 9000 | |
| Brand of Water pump | SHIMGE | SHIMGE | SHIMGE | SHIMGE | SHIMGE | SHIMGE | SHIMGE | SHIMGE | ||
| Plate exchanger | Danfoss | Danfoss | Danfoss | Danfoss | Danfoss | Danfoss | Danfoss | Danfoss | ||
| Waterproof grade | / | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | |
| Noise pressure ( at 1m/5m) | dB(A) | 50/36 | 51/37 | 52/38 | 54/40 | 54/40 | 52/38 | 54/40 | 54/40 | |
| Max water outlet temperature | °C | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Diameter of water connection | / | DN 25 (G1") | DN 25 (G1") | DN 25 (G1") | DN 25 (G1.2") | DN 25 (G1.2") | DN 25 (1") | DN 32 (G1.2") | DN 32 (G1.2") | |
| Internal pressure drop at rating water flow | kPa | 30 | 20 | 30 | 20 | 30 | 30 | 20 | 20 | |
| Min/Max outdoor air (heating mode ) | °C | -25/45 | -25/45 | -25/45 | -25/45 | -25/45 | -25/45 | -25/45 | -25/45 | |
| Min/Max outdoor air (cooling mode ) | °C | 15/45 | 15/45 | 15/45 | 15/45 | 15/45 | 15/45 | 15/45 | 15/45 | |
| Net Dimensions ( L/W/H ) | mm | 976/445/688 | 1106/445/835 | 1106/445/835 | 1106/445/1135 | 1106/445/1591 | 1106/445/1591 | 1106/445/1135 | 1106/445/1591 | |
| Package Dimensions ( L/W/H ) | mm | 1100/455/780 | 1150/455/913 | 1150/455/913 | 1150/455/1225 | 1150/455/1671 | 1150/455/1671 | 1150/455/1225 | 1150/455/1671 | |
| Net Weight | kg | 70 | 90 | 108 | 158 | 168 | 108 | 158 | 168 | |
| Gross Weight | kg | 80 | 100 | 118 | 173 | 183 | 118 | 173 | 183 | |
| Loading quantity 20GP/40GP,40HQ | pcs | 72/156/156 | 48/104/104 | 48/104/104 | 48/104/104 | 24/52/52 | 48/104/104 | 48/104/104 | 24/52/52 | |
Q:Do you provide OEM/ODM customized service?
A: Yes, we warmly welcome your OEM/ODM orders. We can produce standard heat pumps under your brand and according to your special needs.
Q:What type of heat pumps do you have?
A:R32 Split heat pump,R290 monoblock heat pump,swimming pool heat and so on .
