Refrigerant: R22
Voltage: 380-420V
Phase: 3P
Frequency: 50Hz
Horse Power: 6.75 Hp
Rated Load Amps (RLA): 12,0
Locked Rotor Amps (LRA): 101,0
Cooling Capacity: 68000 (BTU)
Application: Air Conditioning
Compressor Type: Scroll Compressor
Product Features
Scroll compressors are now the most used compression technology replacing reciprocating or screw compressors due to its undeniable superiority. Several, fully qualified, multiple compressor assemblies (tandem and trio) allow the use of Copeland Scroll™ into large capacity systems replacing, for example, screw compressors for air cooled chillers up to 500kW to deliver higher system Seasonal Efficiency (ESEER).
Technical parameters
| Model Number | Nominal Horsepower | Cooling Capacity | Input Power | Current | Cop | EER | Displace Ment | Oil injection volume | Net weight | Blocking Current | Noise sound power | |
| HP | (W) | (Btu/h) | (W) | (A) | (W/W) | Btu/Wh | cc/Rev. | (L) | (Kg) | (A) | （dBA） | |

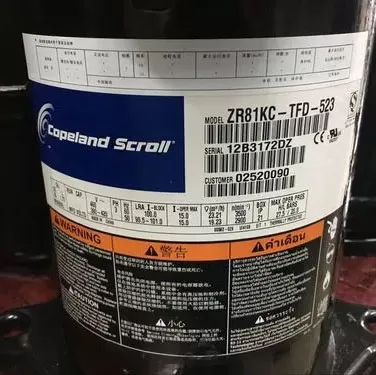

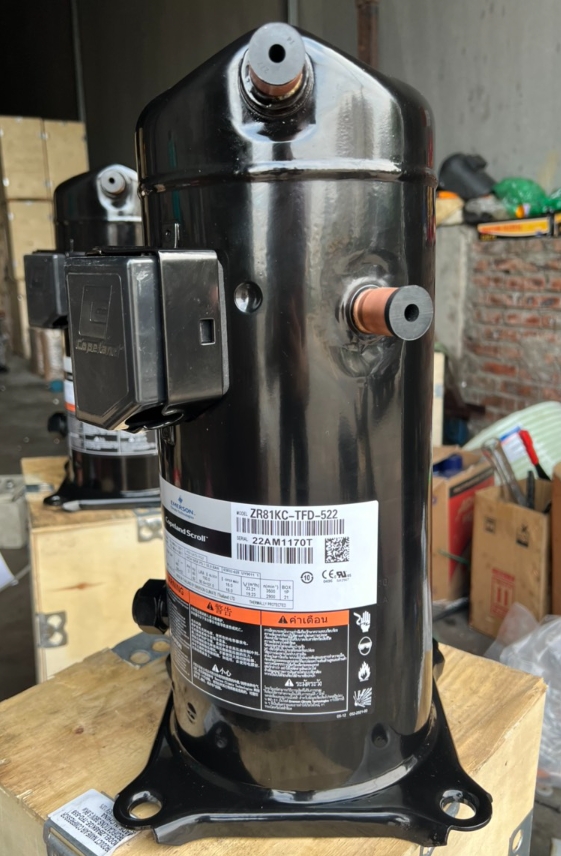

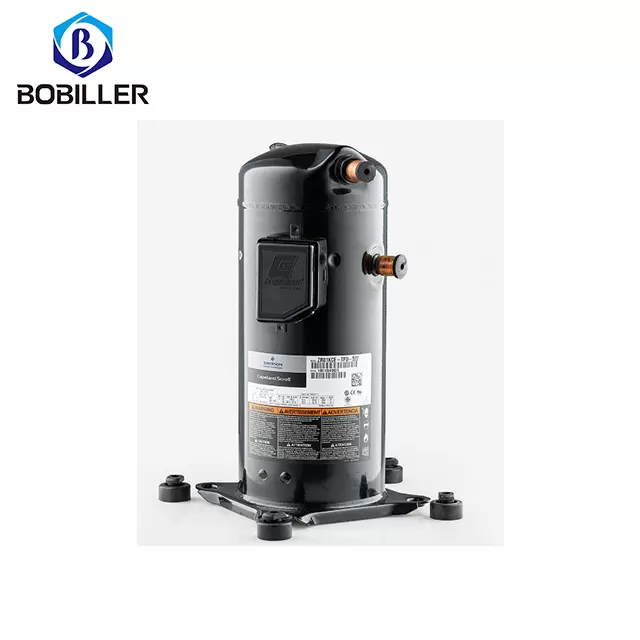

| ZR81KC-TFD-522 | 7 | 19900 | 68000 | 5810 | 10.5 | 3.43 | 11.7 | 107.8 | 1.77 | 39.5 | 101 | 72 |
