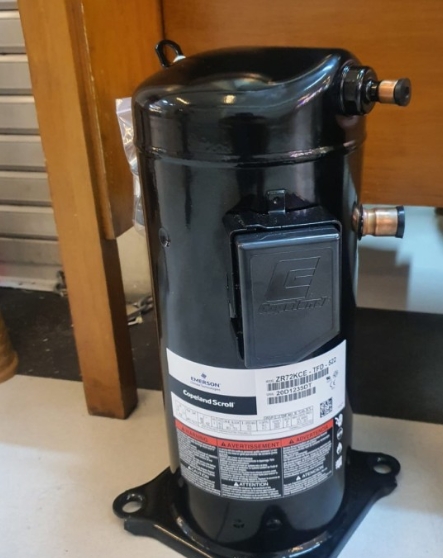

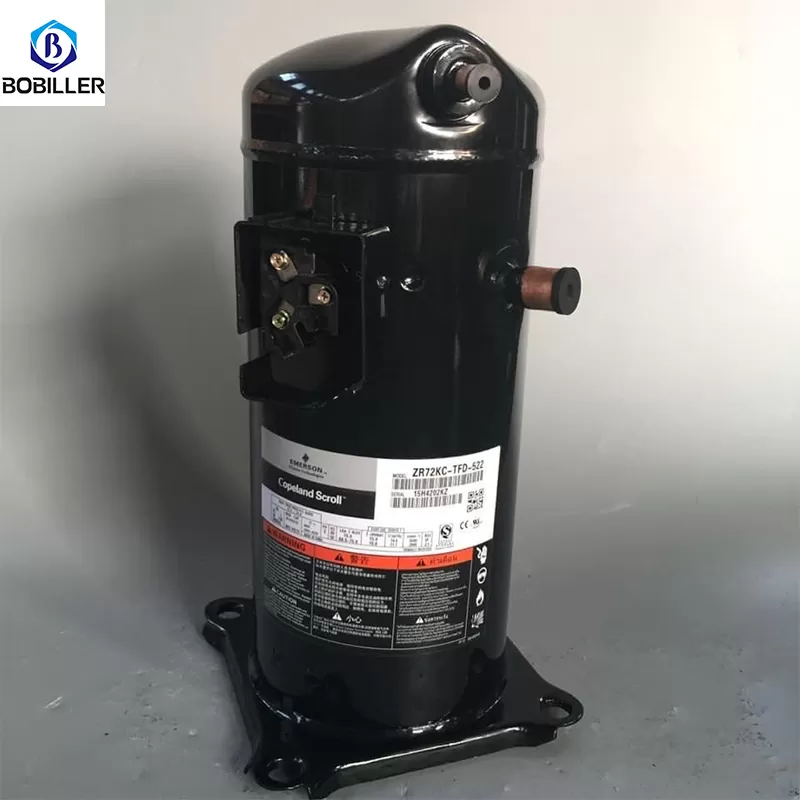

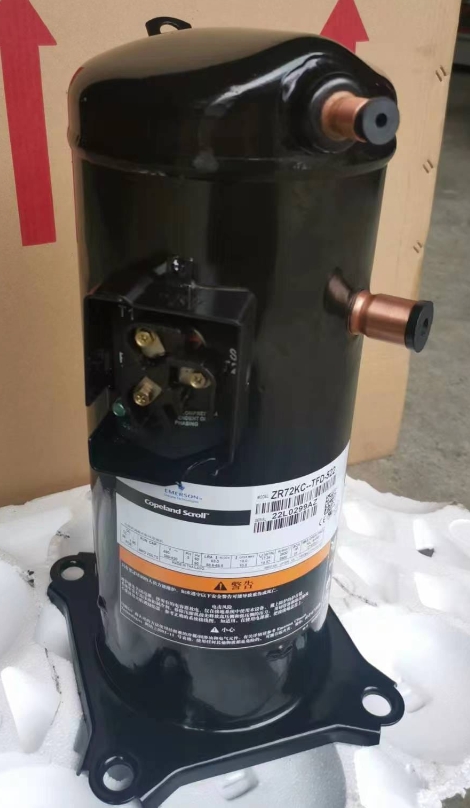

ZR72KC-TFD-522 6HP Emerson Refrigeration Scroll Compressor

Producer: Copeland

Line: ZR Model: ZR72KC-TFD-522

Cooling capacity [kW]: 8.

Displacement [m³/h]: 17.1

rigerant: R22, R134a, R407C

Capacity control: None

Power supply: 400V/3Ph/50Hz

Inquire Now Next Product

Products Desrciption Related Products

Product features

Axial and radial compliance for reliability and efficiency
Wide scroll line-up in R-407C and R-134A
Low TEWI (Total Equivalent Warming Impact)
Low sound and vibration level
Low oil circulation rate
Copeland qualified tandem and trio configurations for seasonal efficiency (ESEER)
Supplied with mounting rubbers
Internal motor protection
Commercial (3 phase only) fixed speed compressor

Technical parameters

Model	ZR72KC-TFD-522
Horse Power (HP)	6.0hp
Voltage	380V-420V,50HZ 3phase
Refrigerant	R22
Cooling Capacity(W)	17700W
Cooling Capacity (Btu/h)	60500Btu/h
Displacement (cc/Rev)	98.1cc/Rev
Input power (W)	5200W
COP(w/w)	3.43w/w
EER(Btu/Wh)	11.7Btu/Wh

Model Number

Nominal Horsepower

Cooling Capacity

Input Power

Current

Cop

EER

Displace Ment

Oil injection volume

Net weight

Blocking Current

Noise sound power

(W)

(Btu/h)

(W)

(A)

(W/W)

Btu/Wh

cc/Rev.

(L)

(Kg)

(A)

（dBA）

ZR72KCE-TFD-522

16600

56500

5150

9.1

3.22

98.1

1.77

38.6

ZR72KCE-TFD-522 6HP Copeland Air Conditioning Scroll Compressor ZR72KC-TFD-522 6HP Emerson Refrigeration Scroll Compressor
