Air-cooled central air-conditioning units, industrial low-temperature refrigeration chiller units

1，Air-cooled chiller with air-cooled heat dissipation design

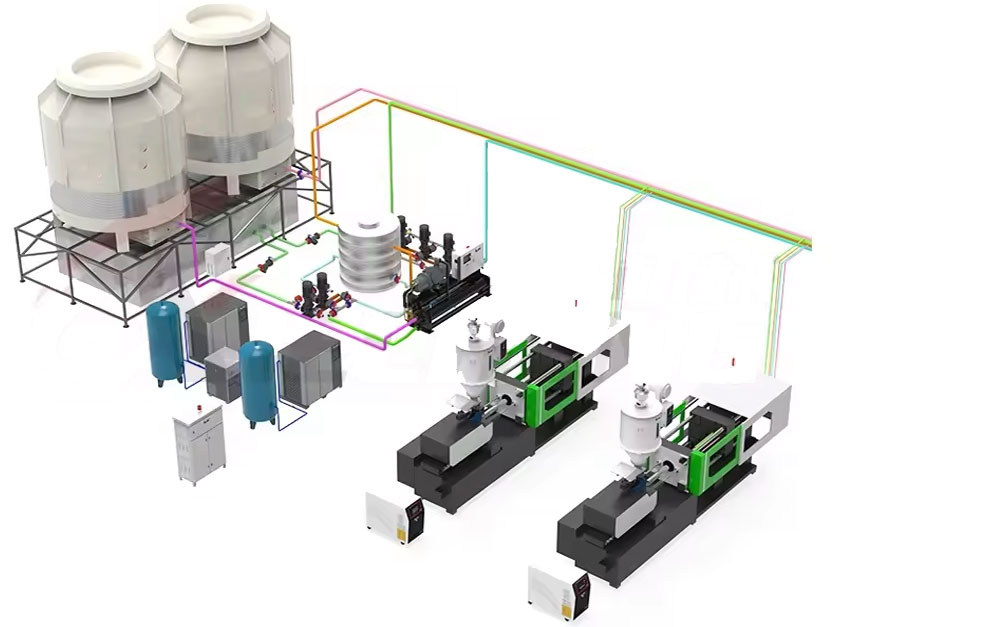

2，Application scenes: industrial production, commercial buildings, agriculture

3, Temperature control range: 3°C ~ 50°C

4、Using scroll compressor

5、Use R22/R407C refrigerant

For price, please contact customer service

Inquire Now

Products Desrciption Related Products

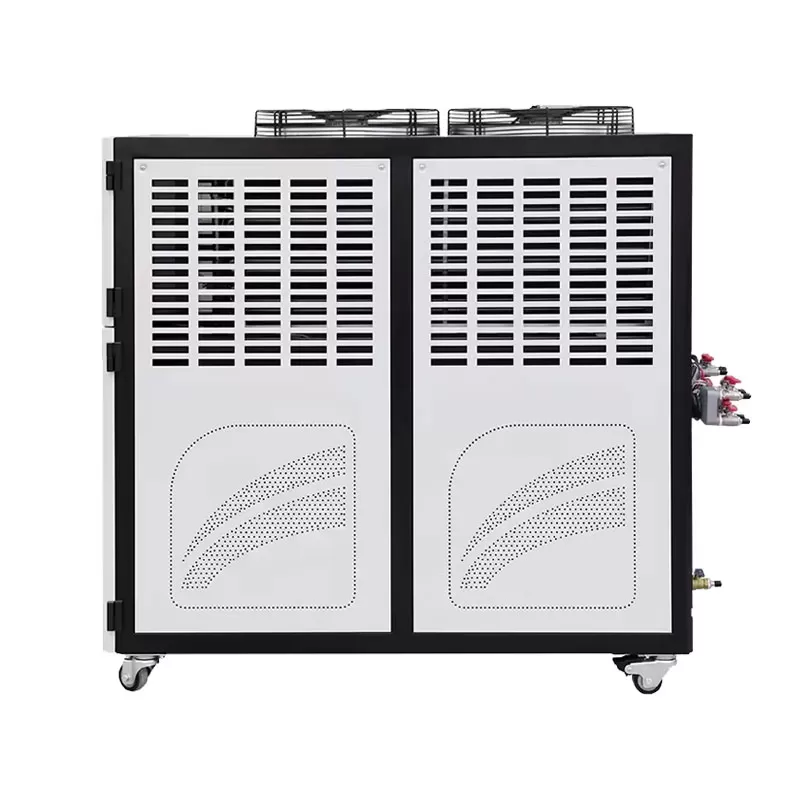

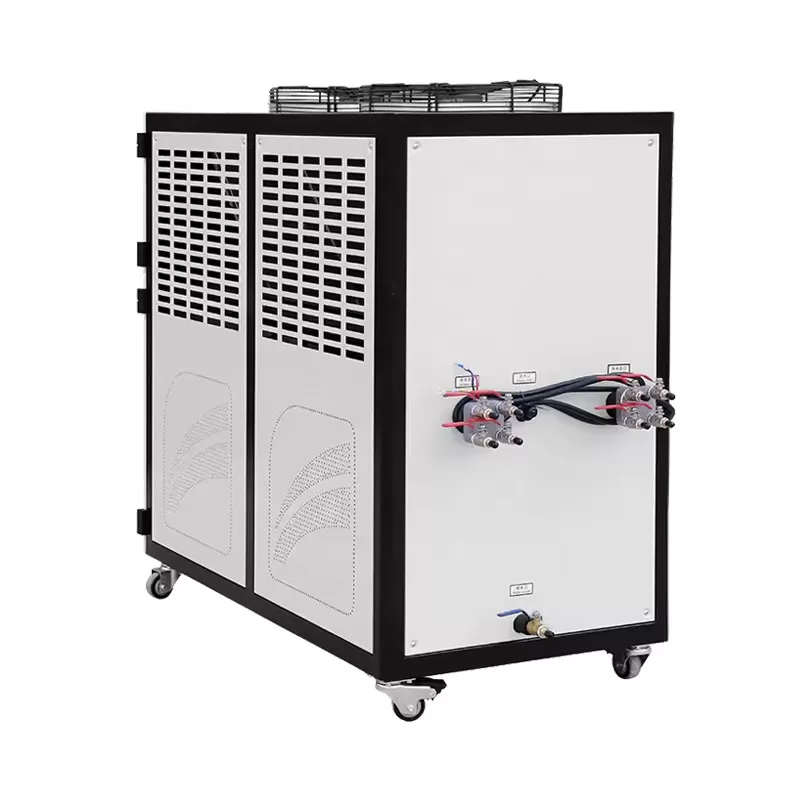

Low Temp 5HP Compressor Industrial Water Chiller Machine Air Cooled Chiller

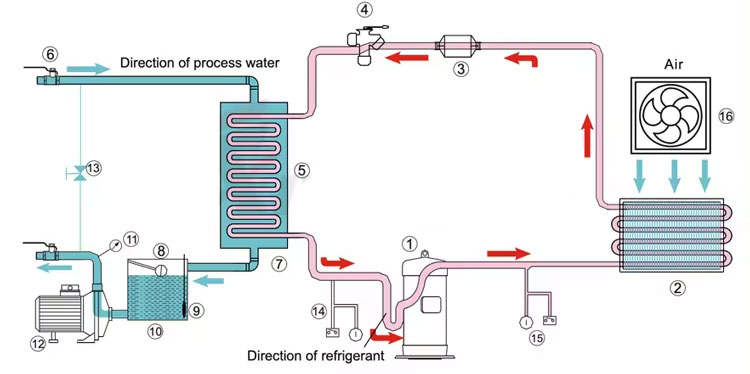

①	Compressor	⑨	Temp. sensor
②	Condenser	⑩	Water tank
③	Dry filter	⑪	Pump pressure gauge
④	Expansion valve	⑫	Pump
⑤	Evaporator	⑬	By-pass valve
⑥	Ball valve	⑭	Low pressure switch
⑦	Anti-freezing switch	⑮	High pressure switch
⑧	Level sensor	⑯	Blower

Model		Unit	XC-LF5A	XC-LF6A	XC-LF8A
Cooling Capacity		KW	14.9	17.2	23
Cooling Capacity		Kcal/h	12814	14792	19780
Compressor	Input Power	KW	3.75	4.5	6
Compressor	Rated Power	HP	5	6	8
Power		3PH-380V/50HZ
Evaporator	Type	Shell and Tube
Evaporator	Pie Diameter	inch	1”	1”	2”
Refrigerant	Type	R22
Refrigerant	Quantity	KG	2	2.5	4
Condenser(air chiller)	Type	Finned Copper Tube + Low Noise Outer Rotor Fan
Condenser(air chiller)	Fan Power	W	180*2	180*2	420*2
Water Tank Capacity		Liter	45	45	80
Pump	Power	KW	0.75	0.75	1.5
	Power	HP	1	1	2
	Distance	m	35	35	15
	Flow Rate	L/min	110	110	360
Safety Protection	High and Low Pressure Protection, Overload Protection,Overtemperature Protection, Phase Sequence Protection,etc.
Dimensions(LWH)		mm	12806801225	12806801225	15508501508
